 DISCUSSION - Grounding Wire Kits

Go down
+7
ayoyo
gorgon1383
XDMoNSterZ
myv7
heikalsan
as_simpleman23
shamiin22
11 posters
Go to page : 1, 2  Next
AuthorMessage
shamiin22
MyviX VIP
MyviX VIP
shamiin22


Male Age : 48
Location : SEMBULAN, AMPANG, PUNCAK ALAM, TAMAN DAYA
Registration date : 2007-12-19
Number of posts : 1347

DISCUSSION - Grounding Wire Kits Empty
PostSubject: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime11/4/2008, 11:23 am

Some Info for U all....

So, why should an automotive performance enthusiast be interested in electrical resistance? Shouldn't we be more concerned about other types of resistance, like the mechanical resistance of moving engine parts or resistance against airflow? Well, yes and no. Obviously, your ride isn't going anywhere if your pistons are grinding against your cylinder walls, but from a pure performance perspective, it'd be wrong to ignore your electrical system, especially since it includes some of the most fundamental components of a modern engine. And the most fundamental element of your car's electrical system is its grounding.

Everything involving your car's electrical system - from nice, fat sparks in your ignition system to nice, fat bass in your subwoofers - requires a free flow of electrons to and from the battery. Good electrical performance requires a grounding system that's prepared to take a lot of current with minimal resistance. Your spark plugs, lights, fans, stereo, air conditioner, cigarette lighter, and so on all benefit from an elaborate electrical network that includes fuses, relays, and high-quality electrical cabling. They all share a common ground, however, and all too often a stock (there's that word again!) grounding system consists of just a couple of skinny braided cables that connect the chassis and engine to your battery's negative terminal. As these sorry connections rust out or come loose over time, the amount of conductive material decreases. This leads to resistance, as your car's electricity is forced to travel over less material. It's not unlike traffic: four lanes definitely accommodate more traffic than two. As your grounding wires deteriorate, resistance increases and all your electrical devices have to work that much harder to overcome that resistance. Even brand new cars can have problems with inadequate grounding, especially if you've installed lots of aftermarket electronics.

IN SHORT: Your grounding wires are the foundation of your car's electrical system. Resistance, in the form of electrical impedance, is the enemy of your car's electrical equipment. High quality grounding cables like those made by Sport Compact Only minimize resistance and help make sure that all of the electrical equipment in your car is performing as well as it can.
Back to top Go down
as_simpleman23
MyviX Warrior
MyviX Warrior
avatar


Male Age : 40
Location : ALOQ STAR - PEnanG
Registration date : 2007-12-21
Number of posts : 2342

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime22/4/2008, 11:30 am

DISCUSSION - Grounding Wire Kits 2606_n10


This is just example..there are many design of grounding in market now..

Where to put?
Grounding means it will be touching with -ve(negative).so beware if u DIY..the common point -ve is from -ve terminal battery..This is point to install :


DISCUSSION - Grounding Wire Kits Maxspe10

1)Body Earth
2)Alternator
3)Cylinder Head
4) Distributor


p/s : our myvi already hv grounding..so if u put another grounding part is better..dont forget to put Voltage Stabalizer to stable ur +ve voltage..
Back to top Go down
heikalsan
MyviX VIP
MyviX VIP
heikalsan


Male Age : 40
Location : Subang Jaya, USJ16, Aloq STAQ (spg 4), Damansara Utama, Pinggiran USJ
Registration date : 2008-03-07
Number of posts : 3338

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime22/4/2008, 2:54 pm

This is how to install grounding cable for your myvi (D.I.Y)

Basically, 5 cables needed

1. Battery terminal to engine block #1
2. Engine block #1 to engine block #2 (picture at the bottom left)
3. Engine block #1 to firewall
4. Engine block #1 to alternator
5. Engine block #2 to chassis ground (driver-side)

No distribution plate or block required.

See pic below for details


DISCUSSION - Grounding Wire Kits Untitl10
Back to top Go down
as_simpleman23
MyviX Warrior
MyviX Warrior
avatar


Male Age : 40
Location : ALOQ STAR - PEnanG
Registration date : 2007-12-21
Number of posts : 2342

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime22/4/2008, 3:17 pm

Distributor only put for old car only.Why?coz no grounding design when they make the car..hehe..just for information..
so don't worry about our myvi..The latest design,but not quite ok la..hehe
If hv plenty of money,why not u all install jer..but dont forget Voltage stabalizer yer..


Heikalsan : thanks bro coz remind me..hehe
Back to top Go down
heikalsan
MyviX VIP
MyviX VIP
heikalsan


Male Age : 40
Location : Subang Jaya, USJ16, Aloq STAQ (spg 4), Damansara Utama, Pinggiran USJ
Registration date : 2008-03-07
Number of posts : 3338

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime22/4/2008, 3:53 pm

remind what??
Back to top Go down
myv7
MyviX VIP
MyviX VIP
myv7


Male Age : 39
Location : kLaNg BaNdAr DiRaJa - PuTrAjAyA dC
Registration date : 2008-01-04
Number of posts : 1934

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime22/4/2008, 10:07 pm

what i know the grounding wire is not need for standard car or our myv n just need when u have an audio system..is it true?..
Back to top Go down
shamiin22
MyviX VIP
MyviX VIP
shamiin22


Male Age : 48
Location : SEMBULAN, AMPANG, PUNCAK ALAM, TAMAN DAYA
Registration date : 2007-12-19
Number of posts : 1347

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime23/4/2008, 9:45 am

Standard car also can install because the most fundamental element of your car's electrical system is its grounding.
Back to top Go down
as_simpleman23
MyviX Warrior
MyviX Warrior
avatar


Male Age : 40
Location : ALOQ STAR - PEnanG
Registration date : 2007-12-21
Number of posts : 2342

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime23/4/2008, 10:04 am

Yup..standard car can be install too.It doesn't matter if u hv an audio system..
The theory : +ve give power..-ve reverse the power..
Back to top Go down
shamiin22
MyviX VIP
MyviX VIP
shamiin22


Male Age : 48
Location : SEMBULAN, AMPANG, PUNCAK ALAM, TAMAN DAYA
Registration date : 2007-12-19
Number of posts : 1347

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime23/4/2008, 10:19 am

what simpleman said is true......
all standard car got gorunding but not as good as aftermarket one...
normally got two type... 4GA and 8GA... different is size only... 4GA smaller is the one same like pivot raizin grounding wire... 4GA is enough for our Myvi from what i heard...
Back to top Go down
heikalsan
MyviX VIP
MyviX VIP
heikalsan


Male Age : 40
Location : Subang Jaya, USJ16, Aloq STAQ (spg 4), Damansara Utama, Pinggiran USJ
Registration date : 2008-03-07
Number of posts : 3338

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime23/4/2008, 11:41 am

you're correct shamiin22 4GA is enough for our myvi......
Back to top Go down
XDMoNSterZ
MyviX Junior
MyviX Junior
XDMoNSterZ


Male Age : 35
Location : kepong
Registration date : 2008-05-12
Number of posts : 39

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime12/5/2008, 1:10 pm

8awg is enough for myvi, number at front smaller means the cable thicker
Back to top Go down
http://www.xdmonsterz.blogspot.com
shamiin22
MyviX VIP
MyviX VIP
shamiin22


Male Age : 48
Location : SEMBULAN, AMPANG, PUNCAK ALAM, TAMAN DAYA
Registration date : 2007-12-19
Number of posts : 1347

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime22/10/2008, 11:24 am

After install 5point 4ga grounding + zaptor 08 vs.... can feel the different.. more comfort while driving and idling.... must buy...
One more thing... Grounding cable is US made, custom lenght and soldered at the lug. Recommended to those haven't installed yet.

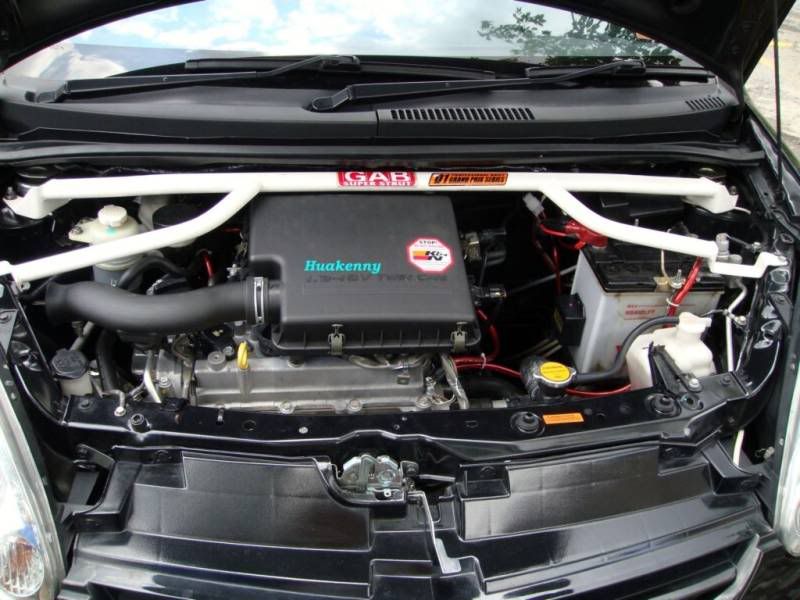

After installation..

DISCUSSION - Grounding Wire Kits Myvi_13JPG

can contact this person... good installation..
huakenny - http://www.huakenny.fotopic.net/p54418029.html
Back to top Go down
myv7
MyviX VIP
MyviX VIP
myv7


Male Age : 39
Location : kLaNg BaNdAr DiRaJa - PuTrAjAyA dC
Registration date : 2008-01-04
Number of posts : 1934

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime11/11/2008, 6:13 pm

someone can suggest me what brand is the best?..
Back to top Go down
gorgon1383
MyviX VIP
MyviX VIP
gorgon1383


Male Age : 41
Location : KLANG / KELANA JAYA
Registration date : 2007-12-21
Number of posts : 619

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime13/11/2008, 5:35 pm

but to me d famous brand is PIVOT kot.
kot ler...hehehe
Back to top Go down
ayoyo
MyviX VIP
MyviX VIP
ayoyo


Male Age : 39
Location : KLANG
Registration date : 2008-11-02
Number of posts : 135

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 1:25 am

I just install the grounding cable... I take HKS brand... I feel diff... While rev no more shacking... More smooth and better... I feel the diff..

heheheh...

I FELL GOOD... nenenenene
Back to top Go down
myvi586
MyviX VIP
MyviX VIP
myvi586


Male Age : 49
Location : klang,jajahan andalas,bkt.tinggi & seantero dgnnya
Registration date : 2008-10-29
Number of posts : 721

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 1:36 am

Ayoyo : u need to couple with Voltage stabilizer then u 'LL know the diff...
Back to top Go down
ayoyo
MyviX VIP
MyviX VIP
ayoyo


Male Age : 39
Location : KLANG
Registration date : 2008-11-02
Number of posts : 135

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 1:38 am

yap... I just order mega raizin... By next week I install to my car...

Need to wait my claim in to my pocket... then only can install
Back to top Go down
myvi586
MyviX VIP
MyviX VIP
myvi586


Male Age : 49
Location : klang,jajahan andalas,bkt.tinggi & seantero dgnnya
Registration date : 2008-10-29
Number of posts : 721

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 1:44 am

How much u get the price so far wat i know pivot raizin blue color another one latest if i'm not mistaken red one Type S including 5 points of GRD Wire
Back to top Go down
ayoyo
MyviX VIP
MyviX VIP
ayoyo


Male Age : 39
Location : KLANG
Registration date : 2008-11-02
Number of posts : 135

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 1:50 am

this one the latest one... purple colour.. rm390 include installation
Back to top Go down
myvi586
MyviX VIP
MyviX VIP
myvi586


Male Age : 49
Location : klang,jajahan andalas,bkt.tinggi & seantero dgnnya
Registration date : 2008-10-29
Number of posts : 721

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 1:57 am

Pergghh! nevermind let me check with my friend the latest one how much he can get coz

type S so far I can get RM2OO including 5 points GW,the blue one around rm140-rm150
Back to top Go down
ayoyo
MyviX VIP
MyviX VIP
ayoyo


Male Age : 39
Location : KLANG
Registration date : 2008-11-02
Number of posts : 135

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 1:59 am

the cheapest I found is RM380 cash n carry...

If u ask me to choice either red or blue pivot... I go for blue... Better
Back to top Go down
myvi586
MyviX VIP
MyviX VIP
myvi586


Male Age : 49
Location : klang,jajahan andalas,bkt.tinggi & seantero dgnnya
Registration date : 2008-10-29
Number of posts : 721

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 2:08 am

I already check both item the diff only the component coz may be the size & value of blue one such as capacitor,resistor & inductor must be smaller than the new one so that why the new one is more expensive than before
Back to top Go down
myvi586
MyviX VIP
MyviX VIP
myvi586


Male Age : 49
Location : klang,jajahan andalas,bkt.tinggi & seantero dgnnya
Registration date : 2008-10-29
Number of posts : 721

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 3:39 am

Ayoyo : Bare in mind don't forget to logon NOTICE OF FAKE RAIZIN by pivotjp.com

then u can compare between genuine & imitation


"JUST REMINED FRIEND HELP FRIEND"
Back to top Go down
ayoyo
MyviX VIP
MyviX VIP
ayoyo


Male Age : 39
Location : KLANG
Registration date : 2008-11-02
Number of posts : 135

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime14/11/2008, 11:55 am

myvi586 wrote:
Ayoyo : Bare in mind don't forget to logon NOTICE OF FAKE RAIZIN by pivotjp.com

then u can compare between genuine & imitation


"JUST REMINED FRIEND HELP FRIEND"

thanks for reminder
Back to top Go down
kronfeld
MyviX Freshies
MyviX Freshies
kronfeld


Male Age : 41
Location : shah alam
Registration date : 2008-08-11
Number of posts : 8

DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime26/3/2009, 12:07 pm

Already installed D1 Earth grounding cable..
Got form 1 guy on mudah.com named Nizam if i'm not mistaken..
Very cheap only RM100..Installed it myself..
Only the difficult part was to tighten the screw on alternator part..
Agreed with all of your opinion guys..
TQ cheers..
Back to top Go down
Sponsored content





DISCUSSION - Grounding Wire Kits Empty
PostSubject: Re: DISCUSSION - Grounding Wire Kits   DISCUSSION - Grounding Wire Kits Icon_minitime

Back to top Go down

DISCUSSION - Grounding Wire Kits
Back to top
Page 1 of 2Go to page : 1, 2  Next
 Similar topics
-
» DISCUSSION - Chamber Kits
» [wts] Electricity Saver Card - No Plug! No Wire!
» DISCUSSION - What is RPM?
» WTS : Grounding Cable For Myvi ( Cap Ayam ) *Used
» [wts] New Pivot Grounding Cable (Not Original)

Permissions in this forum:You cannot reply to topics in this forum
Myvi Extreme Club Malaysia :: Bengkel Kereta & Jual Beli Barangan :: Engine & Performance-
Jump to:
